EA186H

1.21 T @ 80 MM - 3.57 T @ 10 MM - 625 Kg

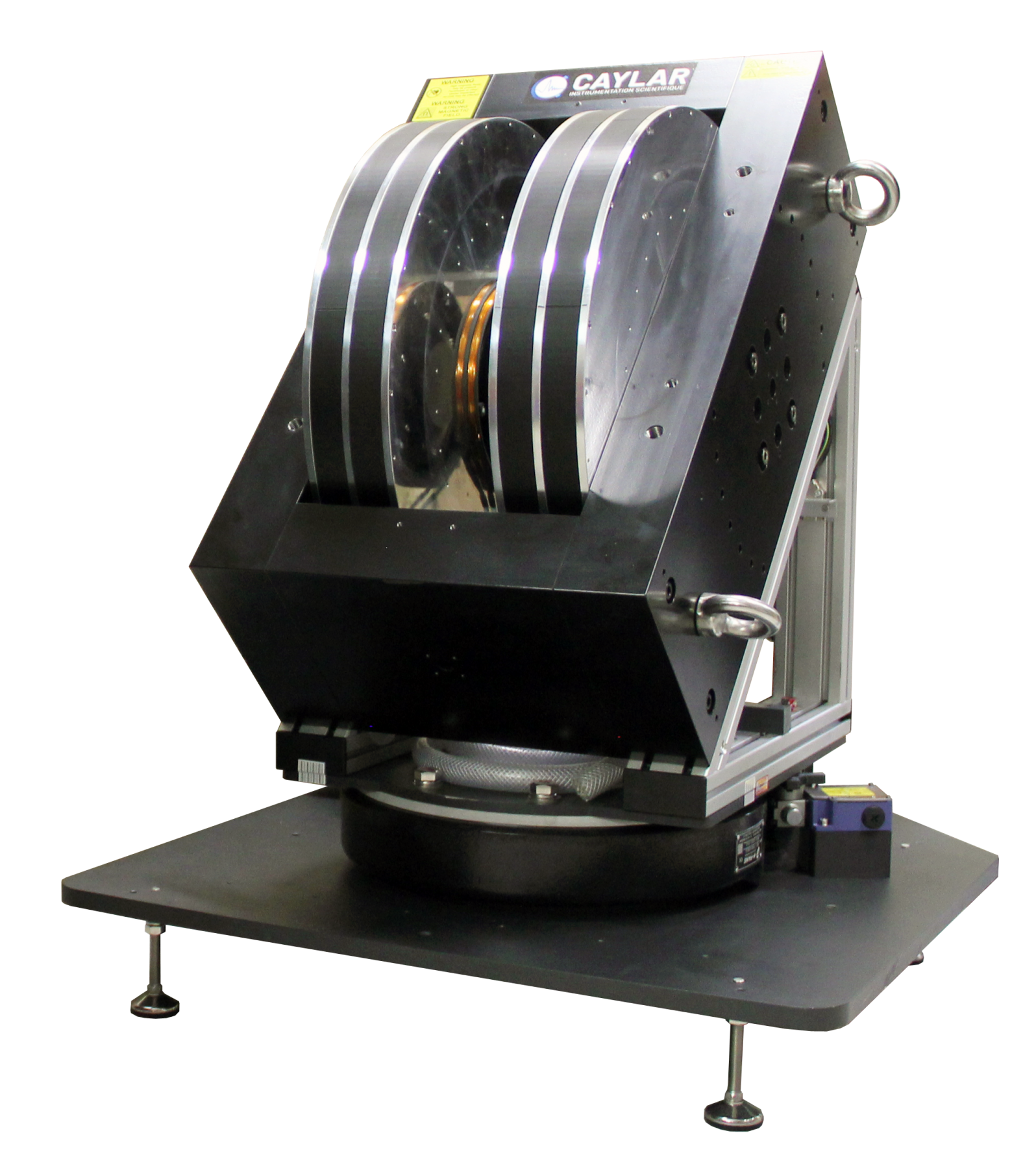

Powerfull laboratory electromagnet with interchangeable poles.

CAYLAR - EA186H Electromagnet - Alernative to GMW 3473 electromagnet


Specifications

Weight625 Kg
Max Field4.13 T @ Entrefer 5mm
Distance between coils>100 mm
Water Flow15 L/min
Resistance @ 20°C0.375 Ohm
Inductance470 mH


Documents




Options

  • Custom pole set (cylindrical, conical, drilled, etc.)
  • 90° support
  • Manual or motorized rotation base
  • Custom made coil
  • Customized pole set
  • AC modulation coils


Power Supplies

Power supplies for the standard coil set (0.166 Ohm) :
  • Power supply 140A 85V
  • Power supply 120A 70V
  • Power supply 100A 60V
  • Power supply 60A 35V
    Options : 10ppm / 5ppm / 1ppm / Integrated HALL Gaussmeter / True Bipolar 4 quadrants / NMR Regulation

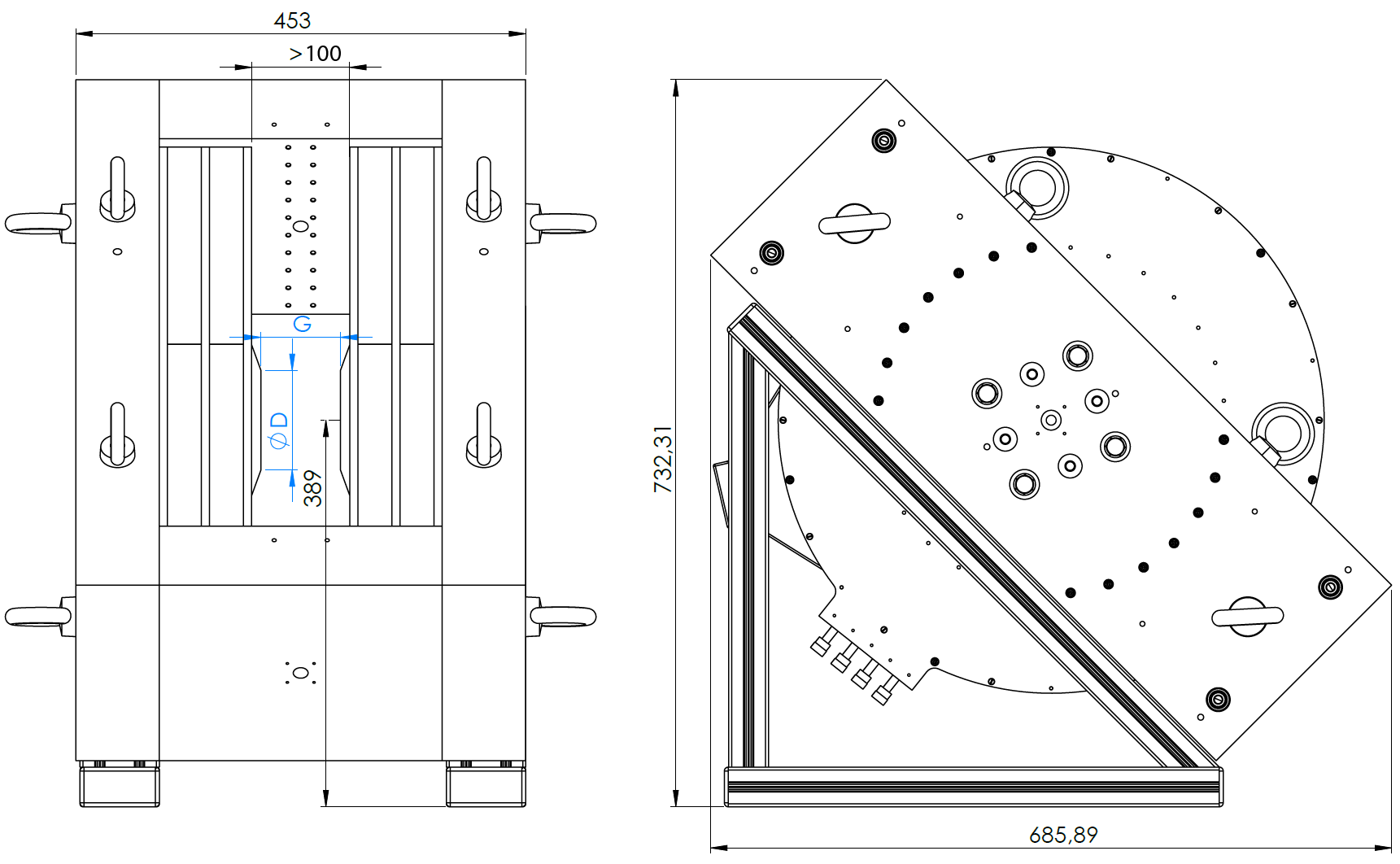

Dimensions

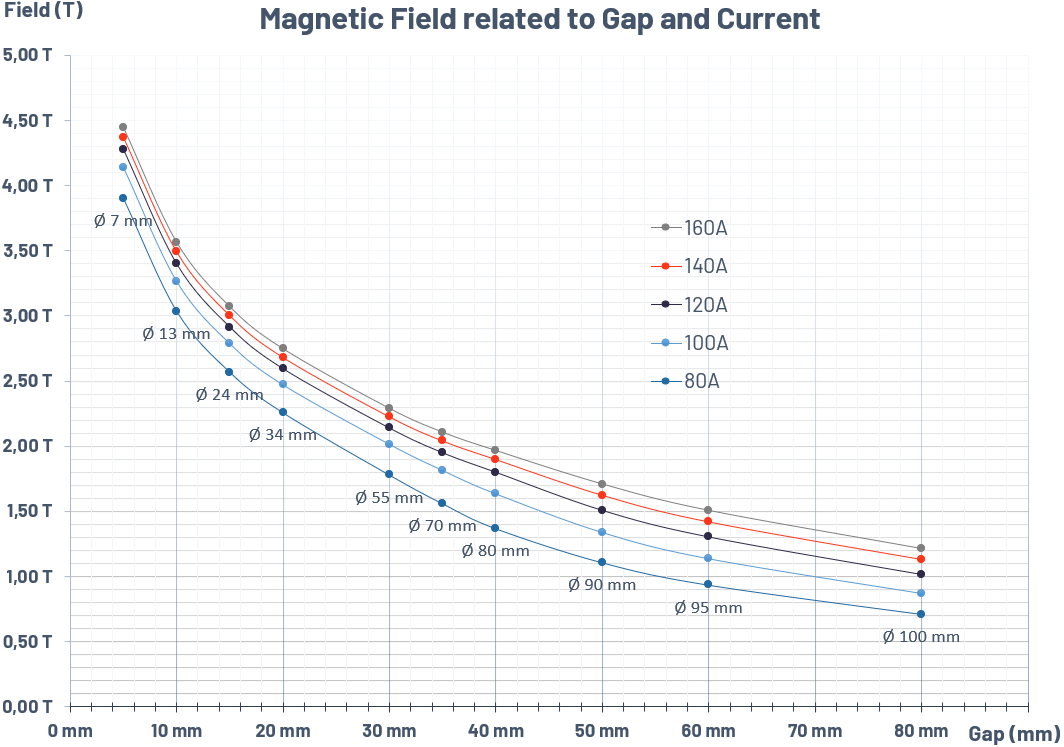

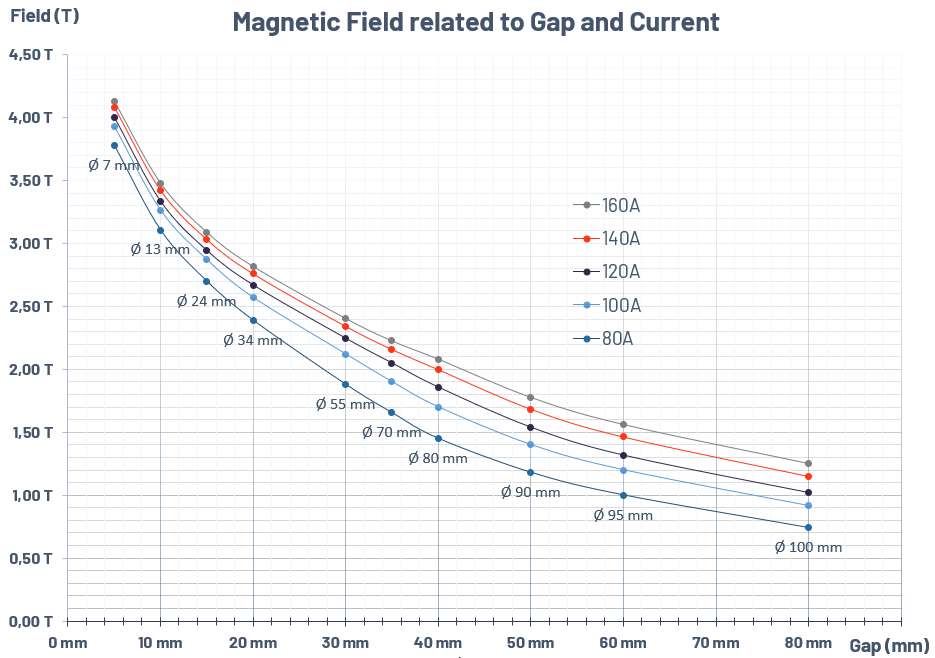

Field and Pole Homogeneity

Gap GB maxFace DHomogeneity: Volume/Plan
5 mm4.13 T7 mm2.99% / 1.59% / Edge:3mm
10 mm3.19 T13 mm1.55% / 0.80% / Edge:4mm
15 mm3.09 T24 mm0.63% / 0.33% / Edge:5mm
20 mm2.82 T34 mm1.15% / 0.67% / Edge:10mm
30 mm2.41 T55 mm0.57% / 0.30% / Edge:10mm
35 mm2. T70 mm0.95% / 0.52% / Edge:15mm
40 mm1.97 T80 mm0.74% / 0.39% / Edge:15mm
50 mm1.78T90 mm0.41% / 0.22% / Edge:15mm
60 mm1.56 T95 mm0.42% / 0.22% / Edge:15mm
80 mm1.215T100 mm0.60% / 0.32% / Edge:20mm




Prices

Please find below the indicative price list to help you estimate the cost of your system. The actual price depends on a number of other factors.


Electromagnet


EA186H

EA186H electro-magnet

EA186H

29 000,00€



Set of Poles


Pole 5

4,45 Tesla in 5mm Gap

EA186-P5

1 200,00€

Pole 10

3,57 Tesla in 10mm Gap

EA186-P10

1 200,00€

Pole 15

3,07 Tesla in 10mm Gap

EA186-P15

1 200,00€

Pole 20

2,75 Tesla in 20mm Gap

EA186-P20

1 200,00€

Pole 30

2,29 Tesla in 30mm Gap

EA186-P30

1 200,00€

Pole 35

2,11 Tesla in 35mm Gap

EA186-P35

1 200,00€

Pole 40

1,97 Tesla in 40mm Gap

EA186-P40

1 200,00€

Pole 50

1,71 Tesla in 50mm Gap

EA186-P50

1 200,00€

Pole 60

1,51 Tesla in 60mm Gap

EA186-P60

1 200,00€

Pole 80

1,21 Tesla in 80mm Gap

EA186-P80

1 200,00€

Custom Poles

Custom poles with simulations

EA186-PXX

1 800,00€



Magnet Power Supply


50V 120A Power supply

Monopolar Power Supply 100ppm

MPU-50V120A-2Q

15 000,00€

50V 120A Bipolar power supply

4 Quadrants True Bipolar Power Supply 100ppm

MPU-50V120A-4Q

22 000,00€

True 10ppm Option

Dérive 10ppm/8h - 2ppm/C°- 2mV Ripple

MPU-50V120A-10PPM

3 500,00€

True 5ppm Option

Dérive 5ppm/8h - 1ppm/C°- 1mV Ripple

MPU-50V120A-5PPM

5 500,00€

True 1ppm Option

Dérive 1ppm/8h - 1ppm/C°- 1mV Ripple

MPU-50V120A-1PPM

8 200,00€

55V 140A Power supply

Monopolar Power Supply 100ppm

MPU-55V140A-2Q

21 500,00€

55V 140A Bipolar power supply

4 Quadrants Bipolar Power Supply 100ppm

MPU-55V140A-4Q

28 500,00€

True 10ppm Option

Dérive 10ppm/8h - 2ppm/C°- 2mV Ripple

MPU-55V140A-10PPM

3 500,00€

True 5ppm Option

Dérive 5ppm/8h - 1ppm/C°- 1mV Ripple

MPU-55V140A-5PPM

5 500,00€

True 1ppm Option

Dérive 1ppm/8h - 1ppm/C°- 1mV Ripple

MPU-65V140A-1PPM

8 200,00€

65V 160A Power supply

Monopolar Power Supply 100ppm

MPU-65V160A-2Q

29 500,00€

65V 160A Bipolar power supply

4 Quadrants Bipolar Power Supply 100ppm

MPU-65V160A-4Q

41 500,00€

True 10ppm Option

Dérive 10ppm/8h - 2ppm/C°- 2mV Ripple

MPU-65V160A-10PPM

3 500,00€

True 5ppm Option

Dérive 5ppm/8h - 1ppm/C°- 1mV Ripple

MPU-65V160A-5PPM

5 500,00€

True 1ppm Option

Dérive 1ppm/8h - 1ppm/C°- 1mV Ripple

MPU-65V160A-1PPM

8 200,00€

HALL Option

Integreted HALL Gaussmeter + HALL Probe

MPU-HALL

3 000,00€

HALL Thermalized Option

Integreted HALL Gaussmeter + Thermalized HALL Probe

MPU-HALL-TH

5 000,00€

Hall Regulation Option

Integreted HALL Regulation

MPU-HALL-REGUL

2 000,00€

Analogic NMR Regulation

NMR Gaussmeter with 4 probes from 20mT to 2,1T

MPU-RMN

35 850,00€



Accessories


Water Chiller

System 20kW

CHILLER-20KW

22 000,00€

45° Support

45° Mounting bracket

EA186-SUP45

1 000,00€

Rolling table support

EA186-TABLE-ROULANTE

5 000,00€

Motorized rotating base

with electronic controller

EA186-ROTM

8 500,00€

Modulation coils

Set of two modulation coils

EA186-ACMOD-COILS

1 750,00€

Custom thermostated chamber

with termal controler

EA186-THCHAMBER

14 500,00€



Accessoires


AC Coils Power Supply

ACMOD-COILS-MPU

4 600,00€


Product added to the quote.


Specific request

Our means of simulation and our know-how allow us to manufacture a custom-made electromagnet according to 5 criteria:

  • Air gap
  • Maximum field
  • Homogeneity
  • Speed of field variation
  • Mechanical constraints (Optical access, UHV, size, mass, etc)

CAYLAR designs and manufactures magnetizing coils, vacuum chambers and current sources which offers a great flexibility for the design of an electromagnet. It is possible to adapt the coils to an existing power supply.
