Hall Teslameters
Standard and custom magnets
CAYLAR works with a wide range of magnetic measurement solutions based on the Hall effect.
Committed to offering instruments that combine reliability, precision, and durability, CAYLAR has chosen to distribute Group3 Technology Hall teslameters and gaussmeters, renowned for their outstanding performance and long-term stability.
Below, you will find two digital teslameter solutions, providing direct magnetic field readings — either locally or remotely.
We also offer two analog solutions, delivering the measurement as a voltage signal: an affordable alternative that makes no compromise on robustness or accuracy.
Digital Teslameters
DTM-133 - Precision Teslameter
Max Field reading : 3T
Absolute Accuracy : ±0,03% of reading + 0,03% full scale
Max resolution : 10µT
Zero Drift (full scale) : ±10ppm/C° typical, ±15ppm/C° max
No Temperature compensation
Available Probes : MPT (miniature probe), LPT (standard probe)
DTM-151 - High-precision, temperature-compensated teslameter
Max Field reading : 3T
Absolute Accuracy : ±0,01% of reading + 0,006% full scale
Max resolution : 0,1µT
Zero Drift (full scale) : ±3ppm/C°
With temperature compensation
Available probes : MPT (miniature probe), LPT (standard probe)
Digital Teslameters
HPC - Analog teslameter ±15Vdc
Max Field reading : 2.2T
Bandwidth : ±0,01% of reading + 0,006% full scale
Noise Level : 0,1µT
Power Input : ±15V, ±14.5V min, ±18V max
Power Output : 5V to 10V
MPT Miniature probe
With temperature compensation

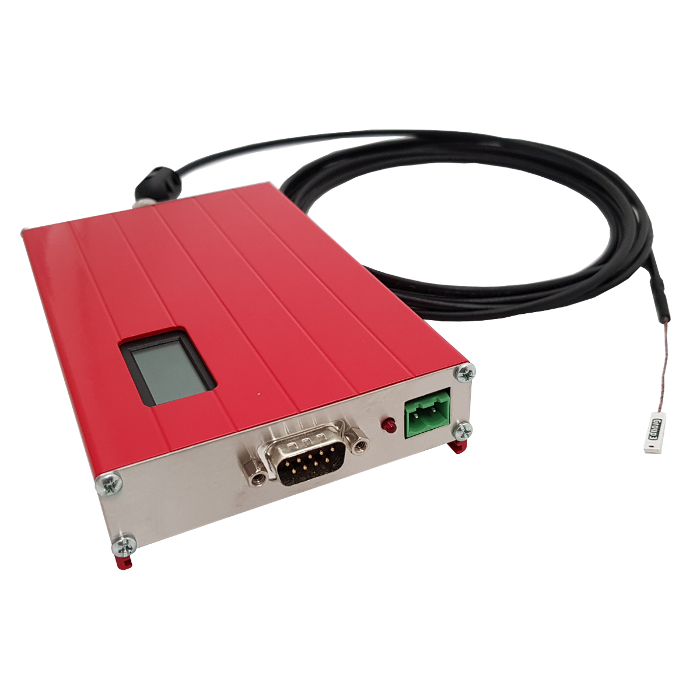

HPCS - Analog teslameter 24 Vac Vdc
Max Field reading : 2.2T
Bandwidth : ±0,01% of reading + 0,006% full scale
Noise Level : 0,1µT
Input Power : 28 Vac, 28 Vdc
Power Output : 5V to 10V
MPT Miniature probe
With temperature compensation
