NMR Probes

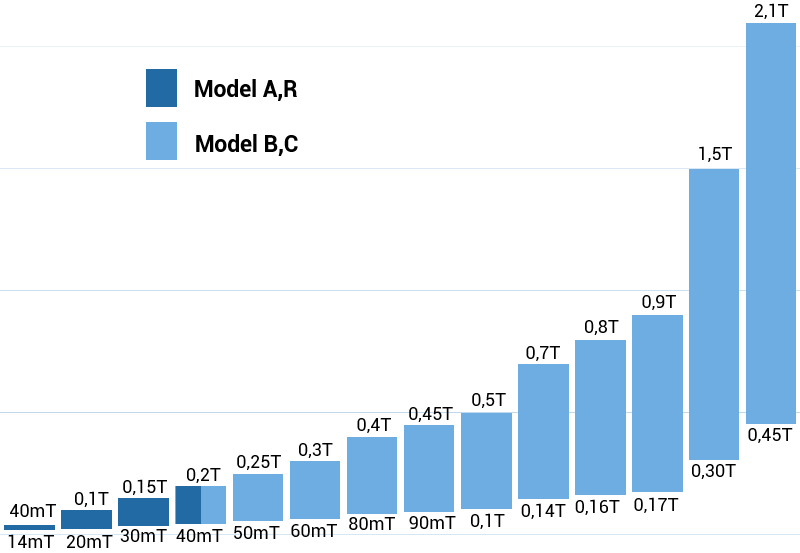

CAYLAR has developed several probes to meet the maximum needs:
  •     Standard probes, optimized to have the best signal to noise ratio with a high dynamic range and a low sensitivity to gradient (typically between 1000 and 2000 ppm/cm).
  •     Miniaturized probes.
  •     Probes for radioactive environments with no electronic components within 11cm of the NMR sample.
  •     Probes for highly radioactive environments with no electronic components within 40cm of the NMR sample.

Specific probes can be made on request:
  •     Gradient sensitivity.
  •     Probe size and shape.
  •     Measurement range.
  •     Cable length (up to 16m instead of 2.5m) in one or more lengths with extension cables.
Catalogue Sondes RMN

pdf . 325.06 Ko



Sonde RMN Miniaturisée Model C





Standard probes



Model A - Drawing

pdf . 132.03 Ko

Model A - 3D File

rar . 194.42 Ko



Model A - From 14mT to 0.2T

Housing size of a classic DRUSCH probe.

Min
Max
Sample
PRBA14-40
<0.014 T
>0.04 T
8x16 mm
PRBA20-100<0.02 T>0.1 TØ 8 mm
PRBA30-150
<0.03 T
>0.15T
Ø 8 mm
PRBA40-200
<0.04 T
>0.2 T
Ø 5 mm
Special features :
  • Equipped with a Hall sensor for a fast search of the NMR signal in less than 1s.
  • Dynamic range higher than 5.
  • The 14mT probe requires a sensitivity better than 400ppm/cm.


Model B - Drawing

pdf . 132.03 Ko

Model B - 3D File

rar . 194.39 Ko



Model B - From 40mT to 13T


Min
Max
Sample
PRBB40-200
<0.04 T
>0.2 T
Ø 5 mm
PRBB50-250
<0.05 T
>0.25 T
Ø 4 mm
PRBB60-300
<0.06 T
>0.3 T
Ø 4 mm
PRBB80-400
<0.08 T
>0.4 T
Ø 4 mm
PRBB90-450
<0.09 T
>0.45 T
Ø 4 mm
PRBB100-100
<0.1 T
>0.5 T
Ø 4 mm
PRBB140-700
<0.14 T
>0.7 T
Ø 4 mm
PRBB160-800
<0.16 T
>0.8 T
Ø 3 mm
PRBB170-900
<0.17 T
>0.9 T
Ø 3 mm
PRBB300-1.5
<0.30 T
>1.5 T
Ø 3 mm
PRBB450-2.1
<0.45 T
>2.1 T
Ø 2.5 mm

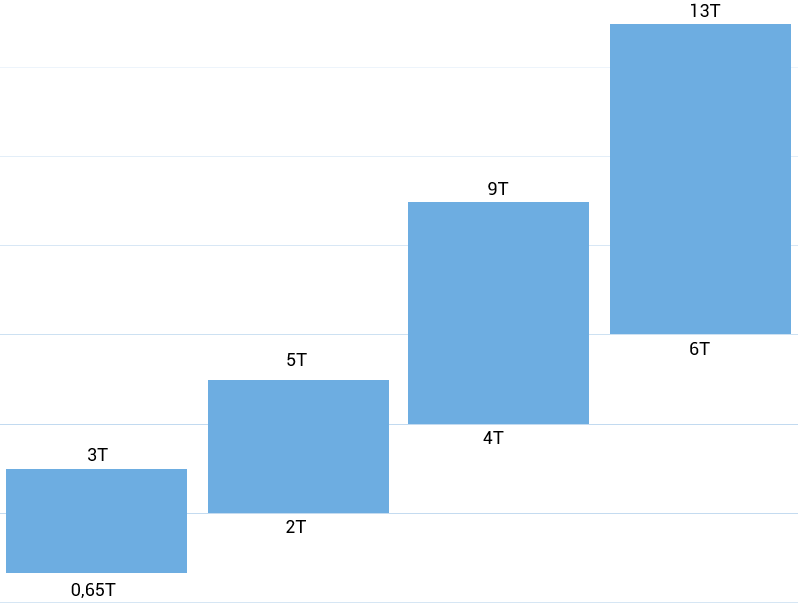

PRBB650-3
<0.65 T
>3 T
Ø 3 mm
PRBB2-5
<2 T
>5 T
Ø 5 mm
PRBB4-9
<4 T
>9 T
Ø 5 mm
PRBB6-13
<6 T
>13 T
Ø 5 mm


















Speacial features :
  • Equipped with a Hall sensor for a fast search of the NMR signal in less than 1s.
  • Dynamic range higher than 5
  • Low thickness.




Miniature Probes



Model C - Drawing

pdf . 115.33 Ko

Model C - 3D File

rar . 209.78 Ko



Model C - From 40mT to 3T


Min
Max
Sample
PRBC40-200
<0.04 T
>0.2 T
Ø 5 mm
PRBC50-250
<0.05 T
>0.25 T
Ø 4 mm
PRBC60-250
<0.06 T
>0.3 T
Ø 4 mm
PRBC80-250
<0.08 T
>0.4 T
Ø 4 mm
PRBC90-250
<0.09 T
>0.45 T
Ø 4 mm
PRBC100-500
<0.1 T
>0.5 T
Ø 4 mm
PRBC140-700
<0.14 T
>0.7 T
Ø 4 mm
PRBC160-800
<0.16 T
>0.8 T
Ø 3 mm
PRBC170-900
<0.17 T
>0.9 T
Ø 3 mm
PRBC300-1.5
<0.30 T
>1.5 T
Ø 3 mm
PRBC450-2.1
<0.45 T
>2.1 T
Ø 2.5 mm
PRBC650-3
<0.65 T
>3 T
Ø 3 mm















Special features :
  • Reduced volume compared to B probes
  • Equipped with a hall effect sensor for a fast search of the NMR signal (<1s).
  • Not equipped with a HALL sensor. NMR signal search in less than 1s per zone or using an NMR probe equipped with a HALL sensor. Full range search in <10s.
  • Axial probe only.


Model T - Drawing

pdf . 131.28 Ko

Model T - 3D File

rar . 182.73 Ko



Model T - From 0.16T to 2.1T


Min
Max
Sample
PRBT160-700
<0.16 T
>0.7 T
Ø 1.5 mm
PRBT340-1.65
<0.34 T
>1.65 T
Ø 1.5 mm
PRBT500-2.1
<0.5 T
>2.1T
Ø 1.5 mm





Special features :
  • Very low thickness.
  • Equipped with a Hall sensor for a fast search of the NMR signal.
  • Reduced dynamic to 4.2 instead of 5.
  • Reduced sensitivity, less good signal to noise ratio.


Model D - Drawing

pdf . 114.88 Ko

Model D - 3D File

rar . 178.89 Ko



Model D - From 0.1T to 3T


Min
Max
Sample
PRBD80-1.5
<0.08 T
>1.5 T
Ø 4 mm
PRBD100-2.1
<0.1 T
>2.1 T
Ø 4 mm
PRBD160-3
<0.16 T
>3 T
Ø 3 mm





Special features :
  • Equipped with a Hall sensor for a quick search of the NMR signal.
  • Equivalent to a dynamic 25 probe.
  • Two samples.
  • Requires a two channel preamplifier.



Description



Description





Probes for radioactive environment



Model RA - Drawing

pdf . 126.66 Ko

Model RA - 3D File

rar . 27.71 Ko



Model RA - From 14mT to 200mT


Min ±4%
Max ±4%
Sample
PRBRA14-40
0.014 T
0.04 T
8x16 mm
PRBRA20-100
0.020 T
0.1 T
Ø 8 mm
PRBRA40-200
0.040 T
0.2 T
Ø 5 mm





Sample features :
  • Distance between the NMR sample and the first electronic component at 11 cm instead of 3 cm.
  • Dynamics reduced to 4.8 instead of 5.
  • Not equipped with HALL sensor. NMR signal search in less than 1s per zone only. Full range search in <10s.


Model RA - Drawing

pdf . 126.62 Ko

Model RB - 3D File

rar . 27.48 Ko



Model RB - From 40mT to 2.1T


Min ±4%
Max ±4%
Sample
PRBRB40-200
0.04 T
0.2 T
Ø 5 mm
PRBRB80-400
0.08 T
0.4 T
Ø 4 mm
PRBRB100-500
0.1 T
0.5 T
Ø 4 mm
PRBRB160-800
0.16 T
0.8 T
Ø 3 mm
PRBRB300-1.5
0.30 T
1.5 T
Ø 3 mm
PRBRB450-2.1
0.45T
2.1 T
Ø 2.5 mm








Special features:
  • Distance between the NMR sample and the first electronic component at 11 cm instead of 3 cm.
  • Low thickness.
  • Dynamics reduced to 4.8 instead of 5.
  • Not equipped with HALL sensor. NMR signal search by zone in less than 1s. Full range search in <10s.


Model RC - Drawing

pdf . 126.18 Ko

Model RC - 3D File

rar . 56.23 Ko




Model RC - From 40mT to 2.1T


Min ±4%
Max ±4%
Sample
PRBRC40-200
0.04 T
0.2 T
Ø 5 mm
PRBRC80-400
0.08 T
0.4 T
Ø 4 mm
PRBRC100-500
0.1 T
0.5 T
Ø 4 mm
PRBRC160-800
0.16 T
0.8 T
Ø 3 mm
PRBRC300-1.5
0.30 T
1.5 T
Ø 3 mm
PRBRC450-2.1
0.45 T
2.1 T
Ø 2.5 mm








Special features :
  •     Distance between the NMR sample and the first electronic component at 11 cm instead of 3 cm.
  •     Reduced volume and thinness.
  •     Dynamics reduced to 4.8 instead of 5.
  •     Not equipped with HALL sensor. NMR signal search by zone in less than 1s. Full range search in <10s.




Probes for highly radioactive environments



Model RA+ - Drawing

pdf . 139.54 Ko

Model RA+ - 3D File

rar . 13.71 Ko



Model RA+ - From 14mT to 200mT


Min ±5%
Max ±5%
Sample
PRBRA+14-40
0.014 T
0.04 T
8x16 mm
PRBRA+20-100
0.02 T
0.100 T
Ø 8 mm
PRBRA+40-200
0.04 T
0.2 T
Ø 5 mm





Special features:
  • Distance between the NMR sample and the first electronic component at 40cm instead of 3cm.
  • Dynamics reduced to 4.5 instead of 5.
  • Not equipped with HALL sensor. NMR signal search by zone in less than 1s. Full range search in <10s.
  • Less good signal to noise ratio than a standard probe.




Model RB+ - Drawing

pdf . 139.78 Ko

Model RB+ - 3D File

rar . 14.41 Ko



Model RB+ - From 40mT to 500mT


Min ±5%
Max ±5%
Sample
PRBRB+40-200
0.04 T
0.2 T
Ø 5 mm
PRBRB+80-400
0.08 T
0.4 T
Ø 4 mm
PRBRB+100-500
0.1 T
0.5 T
Ø 4 mm





Special features:
  • Distance between the NMR sample and the first electronic component at 40cm instead of 3cm.
  • Low thickness.
  • Dynamics reduced to 4.5 instead of 5.
  • Not equipped with HALL sensor. NMR signal search by zone in less than 1s. Full range search in <10s.
  • Less good signal to noise ratio than a standard probe.




Model RC+ - Drawing

pdf . 142.27 Ko

Model RC+ - 3D File

rar . 14.36 Ko



Model RC+ - From 40mT to 500mT


Min ±5%
Max ±5%
Sample
PRBRC+40-200
0.04 T
0.2 T
Ø 5 mm
PRBRC+80-400
0.08 T
0.4 T
Ø 4 mm
PRBRC+100-500
0.1 T
0.5 T
Ø 4 mm





Special features :
  • Distance between the NMR sample and the first electronic component at 40cm instead of 3cm.
  • Low thickness.
  • Dynamics reduced to 4.5 instead of 5.
  • Not equipped with HALL sensor. NMR signal search by zone in less than 1s. Full range search in <10s.
  • Rapport signal sur bruit moins bon qu'une sonde standart.





Tarifs

Please find below the indicative price list to help you estimate the cost of your system. The actual price depends on a number of other factors.


Gaussmeter


NMR20 Gaussmeter

NMR Teslameter - NMR Magnetometer

NMR20

15 600,00€

Option Regulation FR020

NMR Field Regulator

FR020

5 500,00€



NMR Probes


14mT - 70mT A

Case A 20 x 10 x 160 mm

NMR20-PRBA14

6 100,00€

20mT - 100mT A

Case A 20 x 10 x 160 mm

NMR20-PRBA20

4 200,00€

40mT - 200mT A

Case A 20 x 10 x 160 mm

NMR20-PRBA40

2 600,00€

40mT - 200mT B

Case B 16 x 10 x 160 mm

NMR20-PRBB40

3 000,00€

50mT - 250mT B

Case B 16 x 10 x 160 mm

NMR20-PRBB50

3 000,00€

60mT - 300mT B

Case B 16 x 10 x 160 mm

NMR20-PRBB60

2 600,00€

80mT - 400mT B

Case B 16 x 10 x 160 mm

NMR20-PRBB80

2 600,00€

90mT - 450mT B

Case B 16 x 10 x 160 mm

NMR20-PRBB90

2 600,00€

160mT - 800mT B

Case B 16 x 10 x 160 mm

NMR20-PRBB160

2 600,00€

170mT - 900mT B

Case B 16 x 10 x 160 mm

NMR20-PRBB170

2 600,00€

240mT - 1,2T B

Case B 16 x 10 x 160 mm

NMR20-PRBB240

2 600,00€

300mT - 1,5T B

Case B 16 x 10 x 160 mm

NMR20-PRBB300

2 600,00€

450mT - 2,1T B

Case B 16 x 10 x 160 mm

NMR20-PRBB300

2 600,00€

2T - 5T B

Case B 16 x 10 x 160 mm

NMR20-PRBB2

2 600,00€

4T - 9T B

Case B 16 x 10 x 160 mm

NMR20-PRBB4

2 600,00€

6T - 13T B

Case B 16 x 10 x 160 mm

NMR20-PRBB6

2 600,00€

Case C Option

Case C 8 x 6 x 160 mm - From 50mT

NMR20-PRBOPTIONC

400,00€

Double Probe Option

Case D 20 x 6 x 160 mm - From 50mT

NMR20-PRBOPTIOND

1 700,00€



Preamplifiers


PAMUX1

1 Channel Preamplifier

NMR20-PAMUX1

1 400,00€

PAMUX2

2 Channels Preamplifier Multiplexer

NMR20-PAMUX2

2 300,00€

PAMUX4

4 Channels Preamplifier Multiplexer

NMR20-PAMUX4

3 900,00€



Multiplexers


SWMUX4

Multiplexers 4 Channels

NMR20-SW4

2 400,00€

SWMUX8

Multiplexers 8 Channels

NMR20-SW8

4 400,00€



Cables


R51 Cable - 10 meters

Required to connect the Gaussmeter to preamplifiers

NMR20-R51-10

500,00€

R52 Cable - 10 meters

Required to control a multiplexer

NMR20-R52-10

100,00€

Coaxial Cable - 10 meters

Required to connect the Gaussmeter to preamplifiers

NMR20-RCX-10

50,00€

R51 Cable - 50 meters

Required to connect the Gaussmeter to preamplifiers

NMR20-R51-1M

15,00€

R52 Cable - 50 meters

Required to control a multiplexer

NMR20-R52-1M

5,00€

Coaxial Cable - 50 meters

Required to connect the Gaussmeter to preamplifiers

NMR20-RCX-1M

15,00€



Accessories


Gradient compensation coil

40 G/cm

NMR20-GRDTZ

300,00€

Transport Case for 1 System

Waterproof shockproof copolymer case PELICASE

PELICASE AIR1615

800,00€

Transport Case for 2 Systems

Waterproof shockproof copolymer case PELICASE

PELICASE 1650

900,00€
