Our electro-magnet




EA300H

2.05 T @ 50 MM - 3.94 T @ 10 MM - 1450 Kg


Laboratory H-magnet with interchangeable poles.

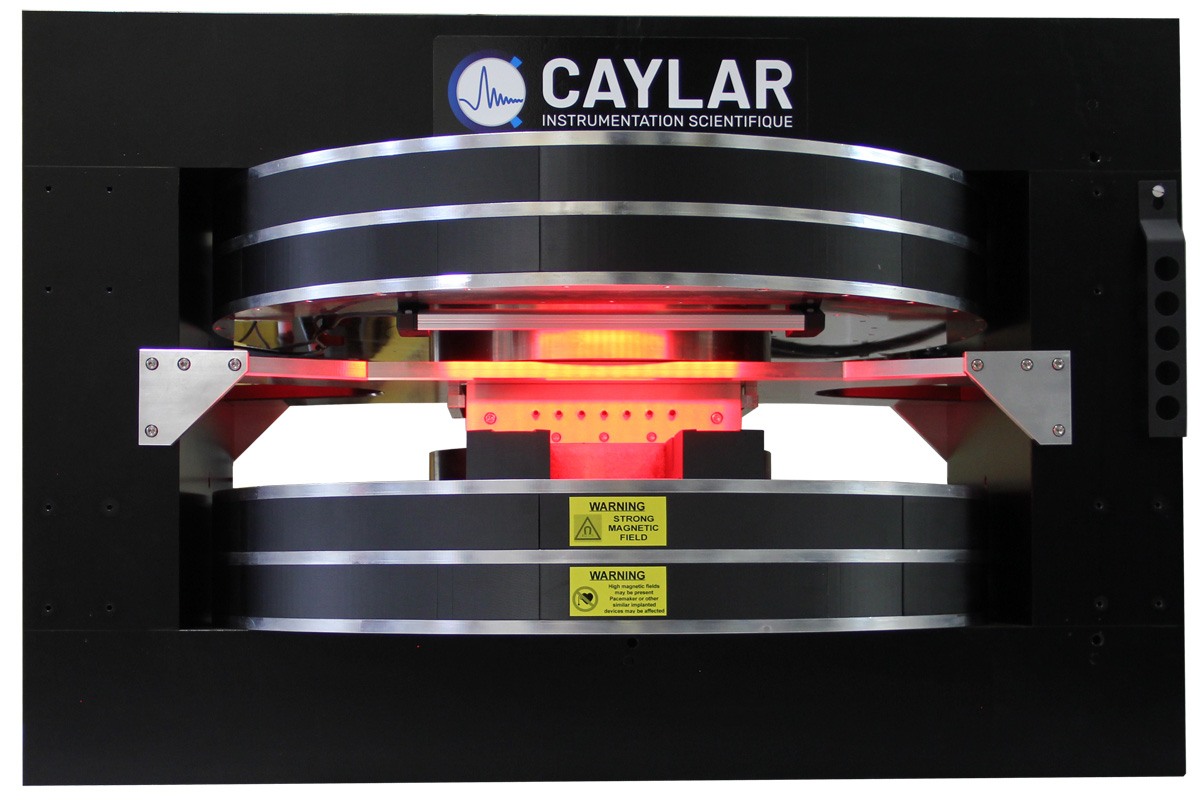

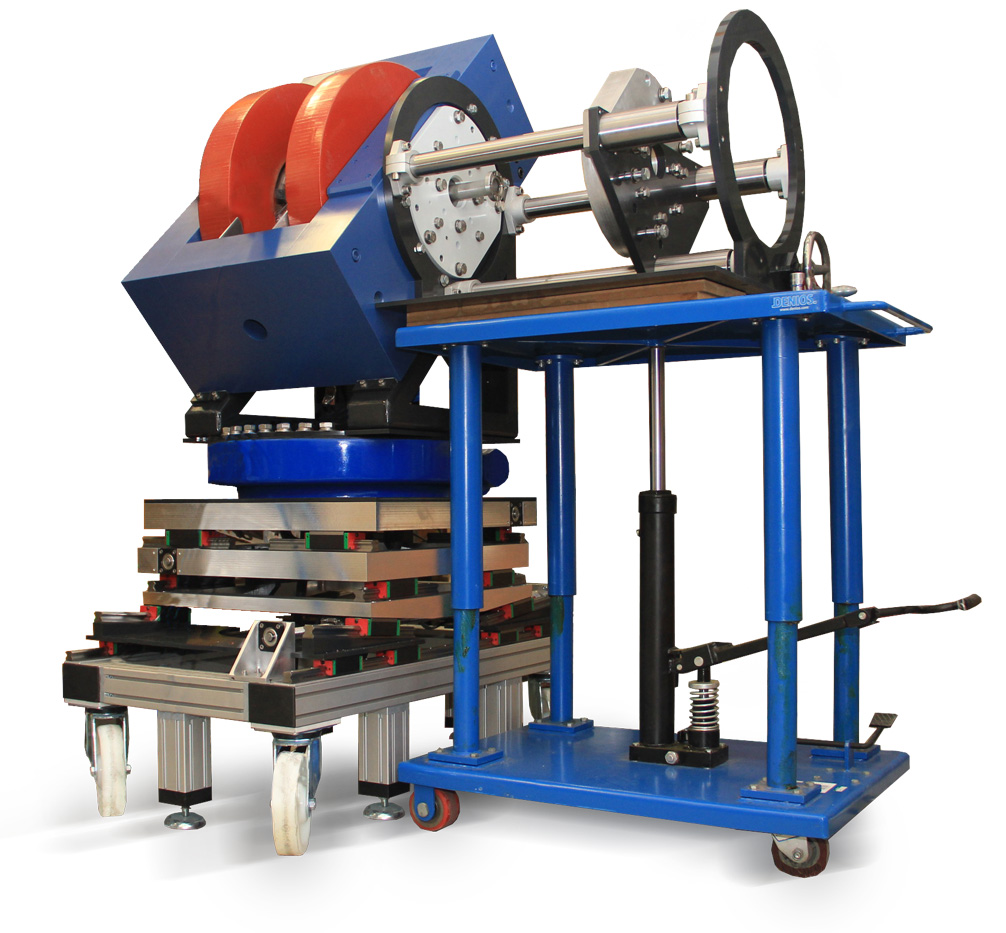

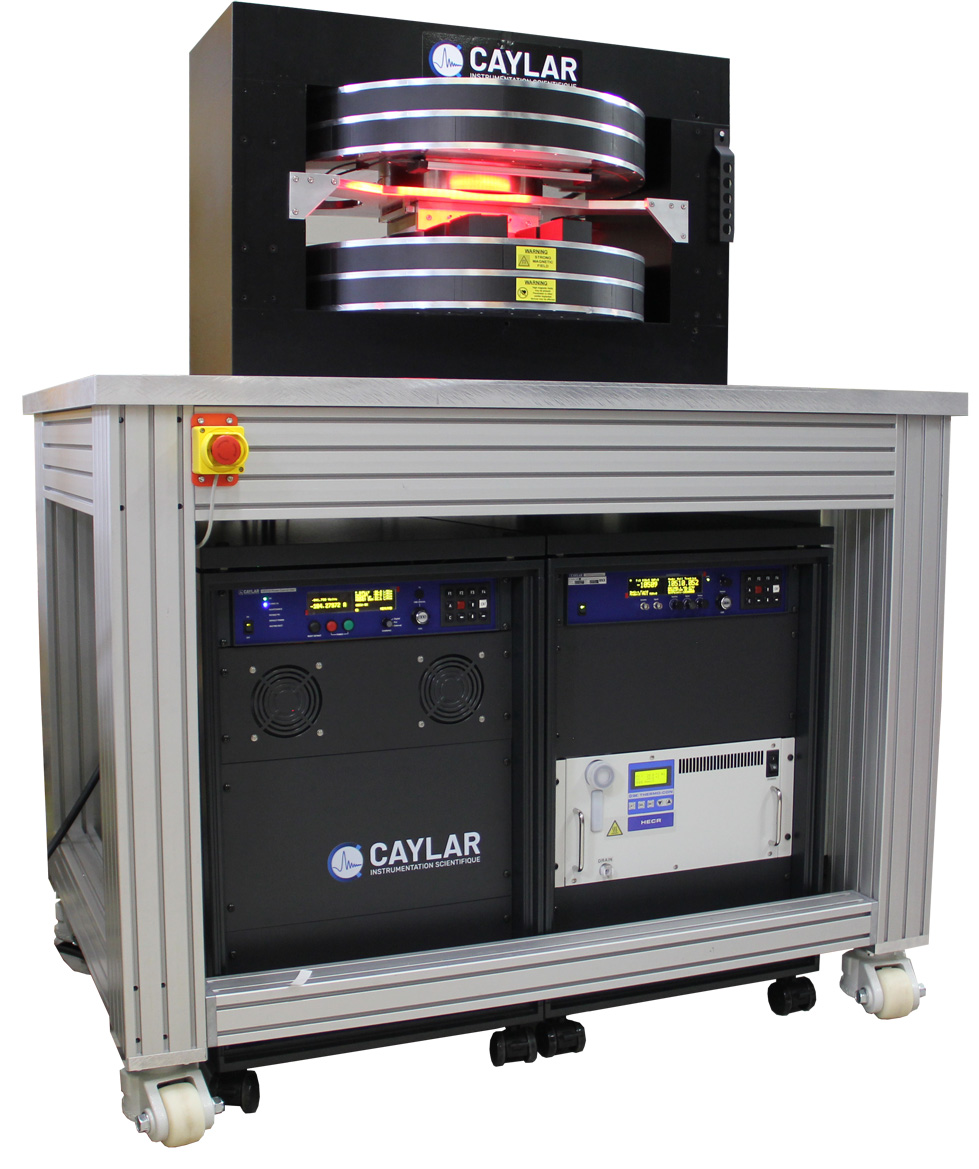

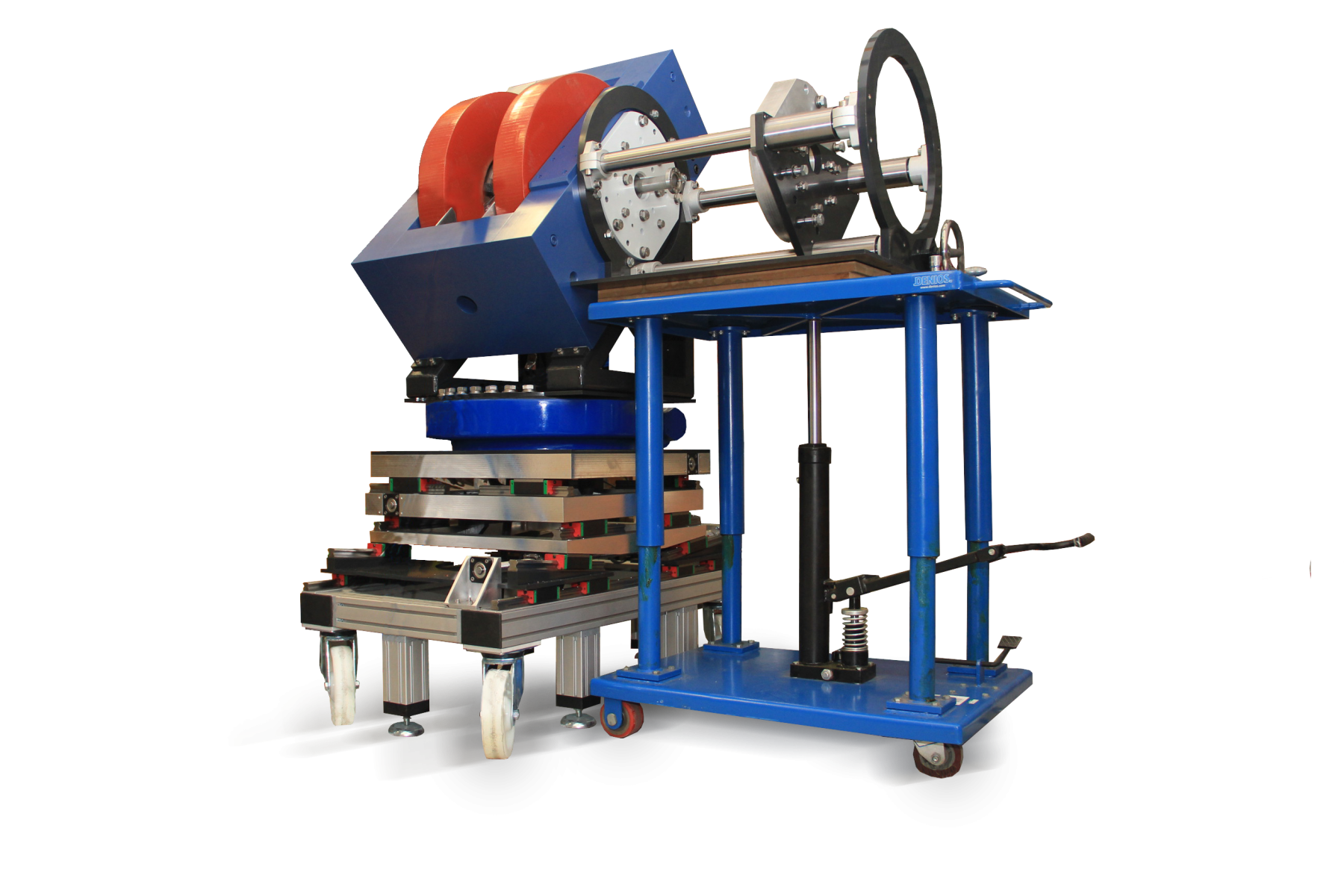

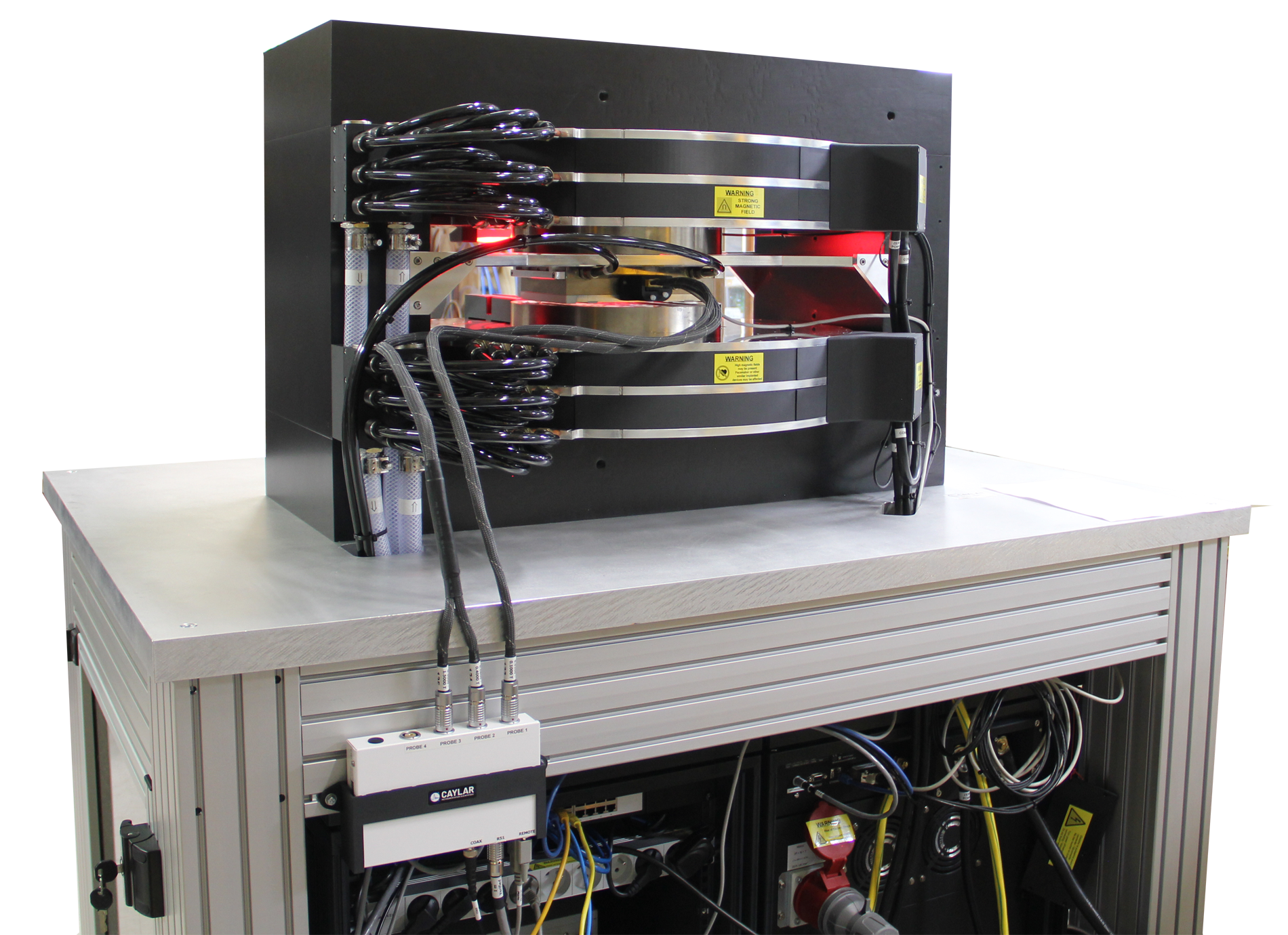

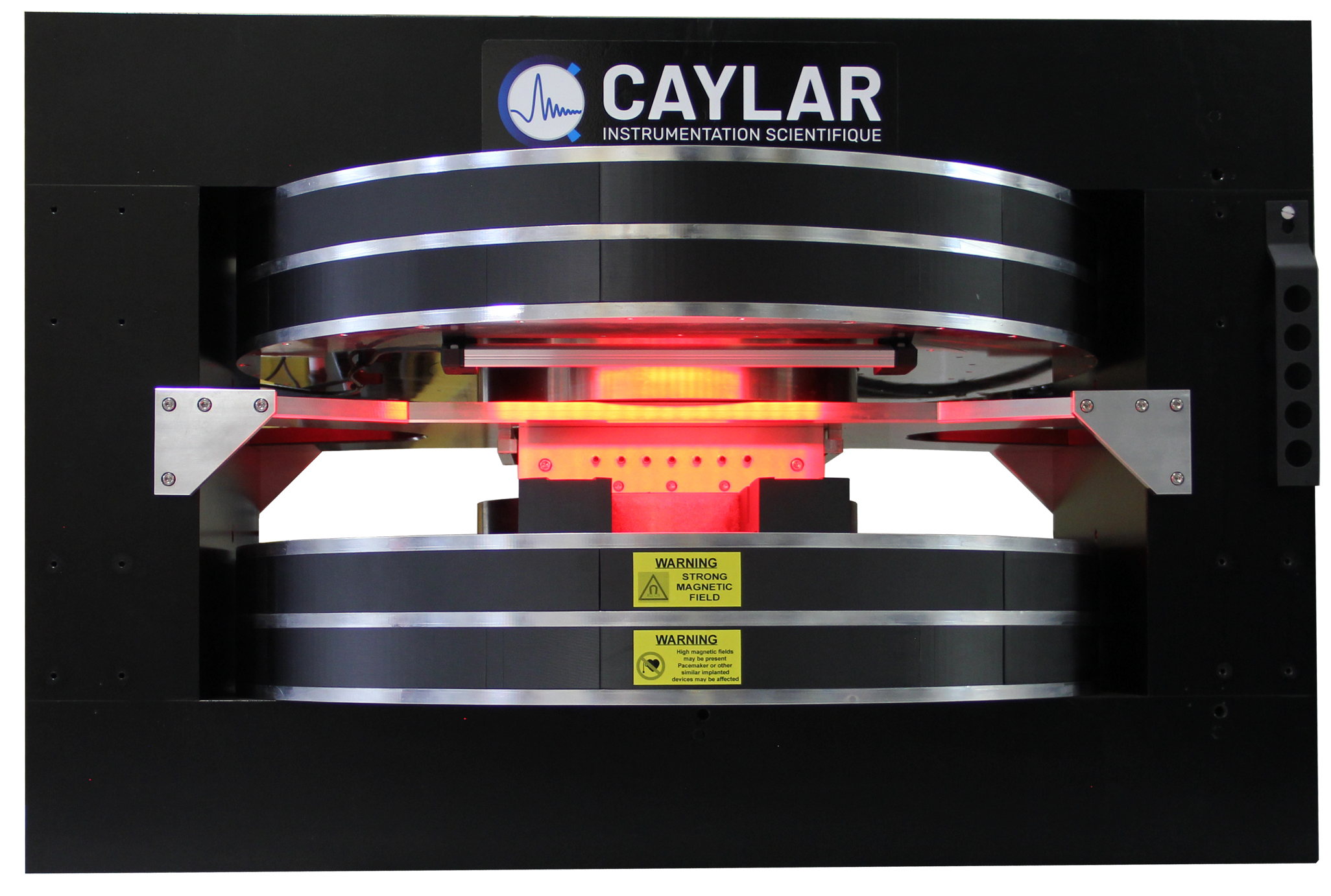

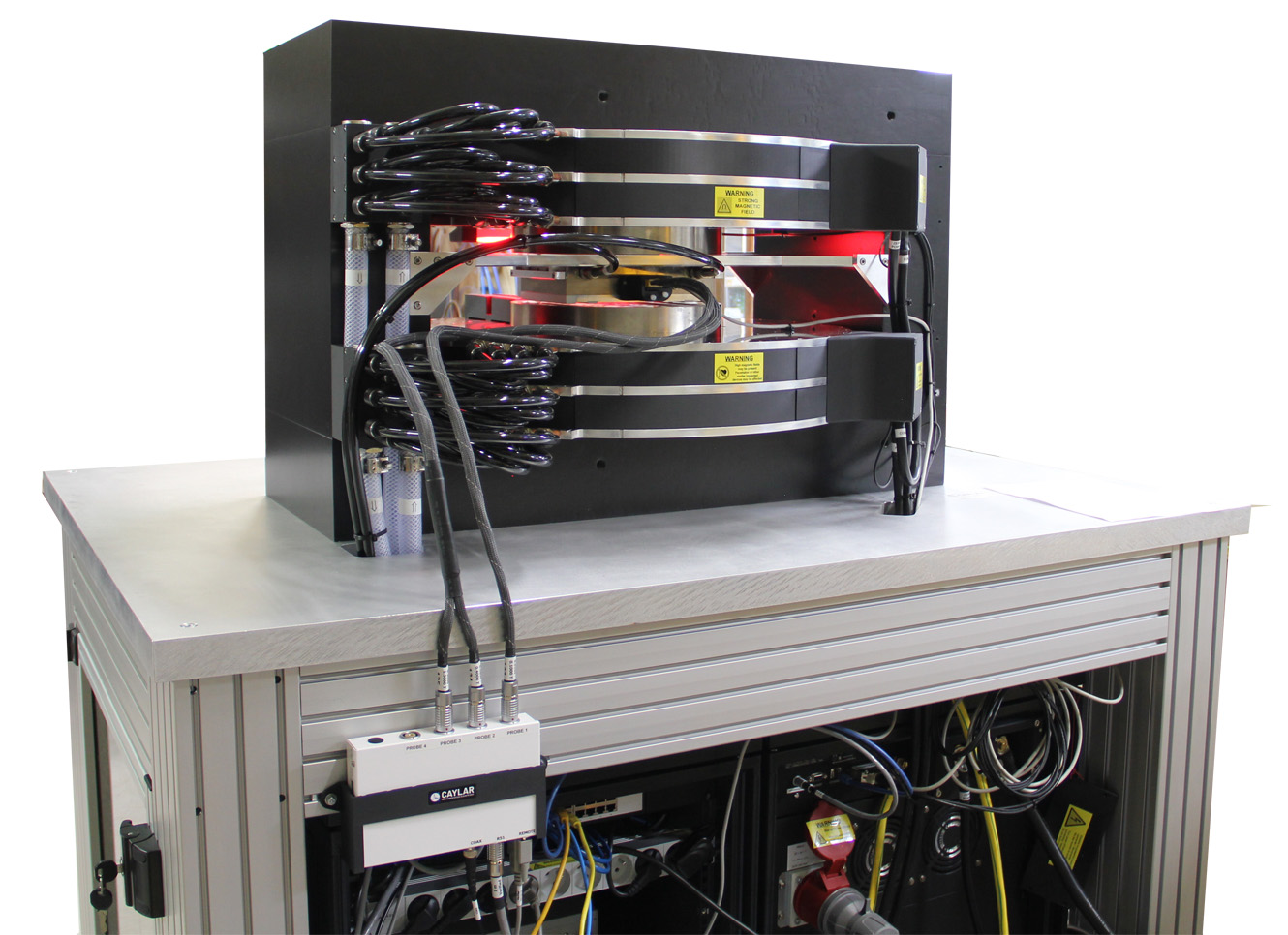

CAYLAR - EA300 Electromagnet
CAYLAR - EA300 Electromagnet
CAYLAR - EA300 Electromagnet




Specifications

Weight
1450 Kg
Max Field
4.79 T @ 5mm
Distance between coils
155 mm
Refroidissement Eau
30 L/min
Résistance @ 20°C0.40 Ohm
Inductance800 mH


Documents




Options

  • 45° support
  • Motorized rotation base
  • Custom coils
  • Custom pole set (cylindrical, conical, drilled, etc.)
  • AC modulation coils
  • Ultra vacuum chamber with access in the pole axis
  • Thermostatic chamber for sensor calibration
  • High Homogeneity HD Poles


Power supplies

Power supplies for the standard coil set (0.166 Ohm) :
  • Power supply 90A / 40V / 3.6kW
  • Power supply 120A / 50V / 6.3kW
  • Power supply 150A / 70V / 10.5kW
  • Power supply 180A / 85V / 15.3kW
Options : True Bipolar 4 Quadrants / 10ppm / 5ppm / 1ppm / Integrated HALL Gaussmeter / NMR Regulation

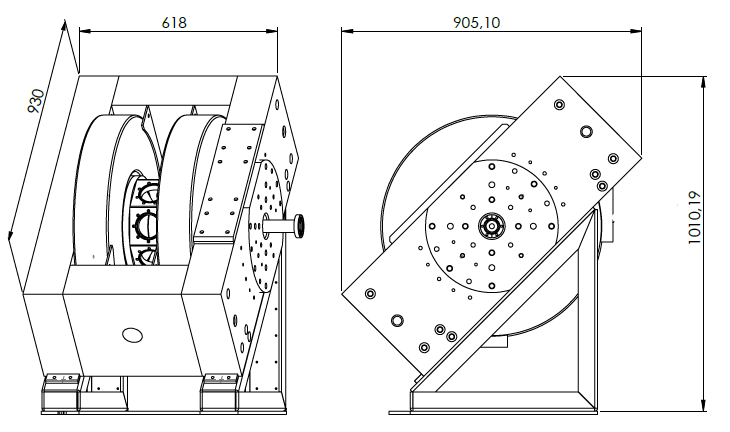

EA300H Dimensions

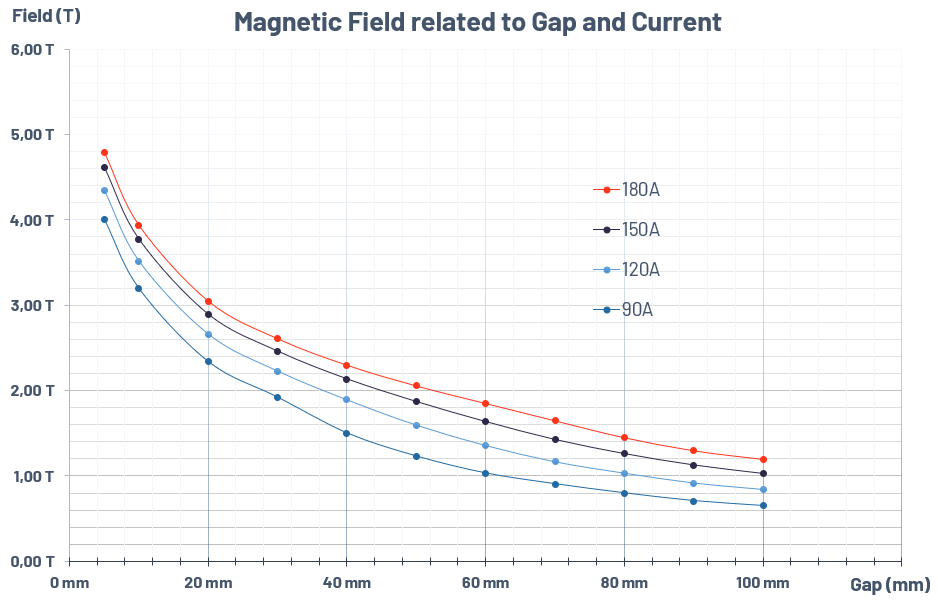

Field and Pole Homogeneity

Gap GB maxFace DHomogeneity/Volume
5 mm4.79 T10 mm2.05%/3x3x3 mm
10 mm3.94 T14 mm2.48%/8x8x8 mm
20 mm3.05 T42 mm2.33%/10x10x10 mm
30 mm2.61 T62 mm1.03%/20x20x20 mm
40 mm2.30T80 mm0.81%/20x20x20 mm
50 mm2.05T90 mm0.87%/20x20x20 mm
60 mm1.85 T95 mm0.91%/20x20x20 mm
70 mm
1.65 T
100 mm0.75%/20x20x20 mm
70 mm1.31 T300 mm0.13%/20x20x20 mm
80 mm1.45 T150 mm0.24%/20x20x20 mm
90 mm1.30 T180 mm0.16%/20x20x20 mm
100 mm1.19 T200 mm0.11%/20x20x20 mm


Specific request

Our means of simulation and our know-how allow us to manufacture a custom-made electromagnet according to 5 criteria:

  • Air gap
  • Maximum field
  • Homogeneity
  • Speed of field variation
  • Mechanical constraints (Optical access, UHV, size, mass, etc)

CAYLAR designs and manufactures magnetizing coils, vacuum chambers and current sources which offers a great flexibility for the design of an electromagnet. It is possible to adapt the coils to an existing power supply.

* Fields marked with an asterisk are required.








Specify an air or volume








Prices

Please find below the indicative price list to help you estimate the cost of your system. The actual price depends on a number of other factors.


Electromagnets


EA300H

EA300H electro-magnet

EA300C

46 000,00€



Set of Poles


Pole 5

5mm Gap

EA300-P5

3 500,00€

Pole 10

10mm Gap

EA300-P10

3 500,00€

Pole 20

20mm Gap

EA300-P20

3 500,00€

Pole 30

30mm Gap

EA300-P30

3 500,00€

Pole 40

40mm Gap

EA300-P40

3 500,00€

Pole 50

50mm Gap

EA300-P50

3 500,00€

Pole 60

60mm Gap

EA300-P60

3 500,00€

Pole 70

70mm Gap

EA300-P70

3 500,00€

Pole 70 HD

High Homogeneity 70mm pole Gap

EA300-P70HD

3 500,00€

Pole 80

80mm Gap

EA300-P80

700,00€

Custom Poles

Custom poles with simulations

EA300-PXX

700,00€



Magnet Power Supply


40V 90A Power supply

Monopolar Power Supply 100ppm

MPU-40V90A

7 500,00€

40V 90A Bipolar power supply

4 Quadrants True Bipolar Power Supply 100ppm

MPU-40V90A-4Q

10 000,00€

50V 120A Power supply

Monopolar Power Supply 100ppm

MPU-50V120A

15 000,00€

50V 120A Bipolar power supply

4 Quadrants True Bipolar Power Supply 100ppm

MPU-50V120A-4Q

22 000,00€

70V 150A Power supply

Monopolar Power Supply 100ppm

MPU-70V150A

21 500,00€

70V 150A Bipolar power supply

4 Quadrants True Bipolar Power Supply 100ppm

MPU-70V150A-4Q

28 500,00€

85V 180A Power supply

Monopolar Power Supply 100ppm

MPU-85V180A

29 500,00€

85V 180A Bipolar power supply

4 Quadrants Bipolar Power Supply 100ppm

MPU-85V180A-4Q

41 500,00€

True 10ppm Option

Dérive 10ppm/8h - 2ppm/C°- 2mV Ripple

MPU-10PPM

4 000,00€

True 5ppm Option

Dérive 5ppm/8h - 1ppm/C°- 1mV Ripple

MPU-5PPM

6 000,00€

True 5ppm Option

Dérive 1ppm/8h - 1ppm/C°- 1mV Ripple

MPU-1PPM

8 200,00€

HALL Option

Integreted HALL Gaussmeter + HALL Probe

MPU-HALL

3 000,00€

Analogic NMR Regulation

NMR Gaussmeter with 4 probes from 20mT to 2,1T

MPU-RMN

35 850,00€



Accessories


Water Chiller

System 20kW

CHILLER-20KW

22 000,00€

45° Support

EA300-SUP45

3 500,00€

Rolling table support

EA300-TABLE

5 000,00€

Motorized rotating base

with electronic controller

EA300-ROTM

5 000,00€

Modulation coils

Set of two modulation coils

EA300-AC

2 000,00€

Custom thermostated chamber

with termal controler

EA300-THCHAMBER

14 500,00€
