Our electro-magnet




MOKE UHV ALBA

2.28 T @ 10 MM - 0.97 T @ 40 MM - 313 Kg

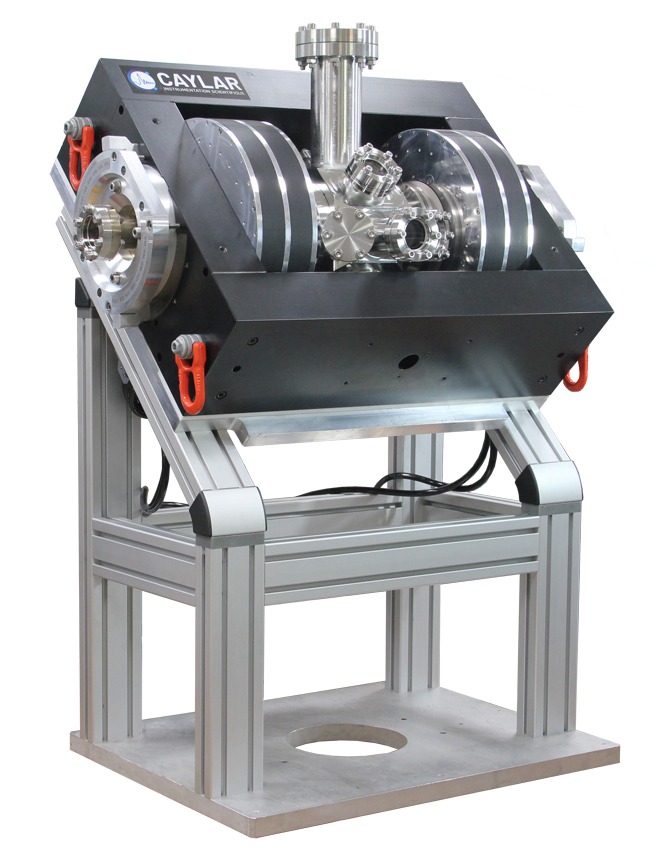

Compact and lightweight laboratory electromagnet with drilled variable poles. Optimized for magneto-optical experiments (MOKE, XMCD) under ultra-high vacuum. The coils are optimized for fast ramping.

CAYLAR - EA73C Electromagnet


Specifications

Weight
313 Kg
Max Field
2.28 T
Distance between coils>270 mm
Temp. Max
45°C
Water flow
12 L/min
Resistance @ 20°C
0.08 Ohm
Inductance30 mH


Documents

MOKE UHV ALBA - Datasheet

pdf . 3154.65 Ko




Options

  • Custom pole set (cylindrical, tapered, drilled, etc.)
  • Custom Coils / Poles
  • Modulation coils


Power supplies

Power supplies for the standard coil set:
  • Power supply true Bipolar 4 quadrands 350A/40V
  • Power supply true Bipolar 4 quadrands 180A/40V
  • Power supply true Bipolar 4 quadrands 150A/15V

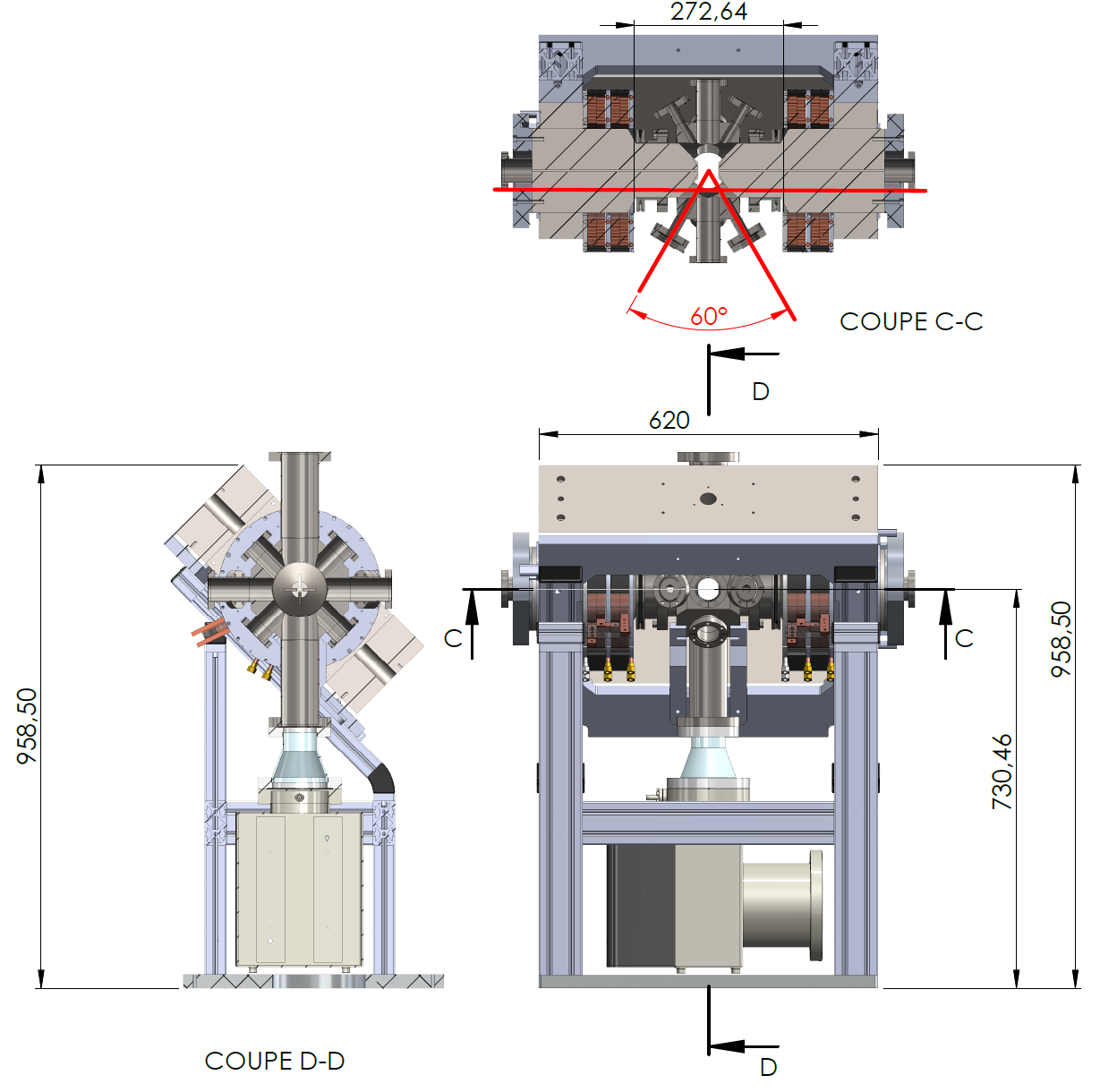

Dimensions

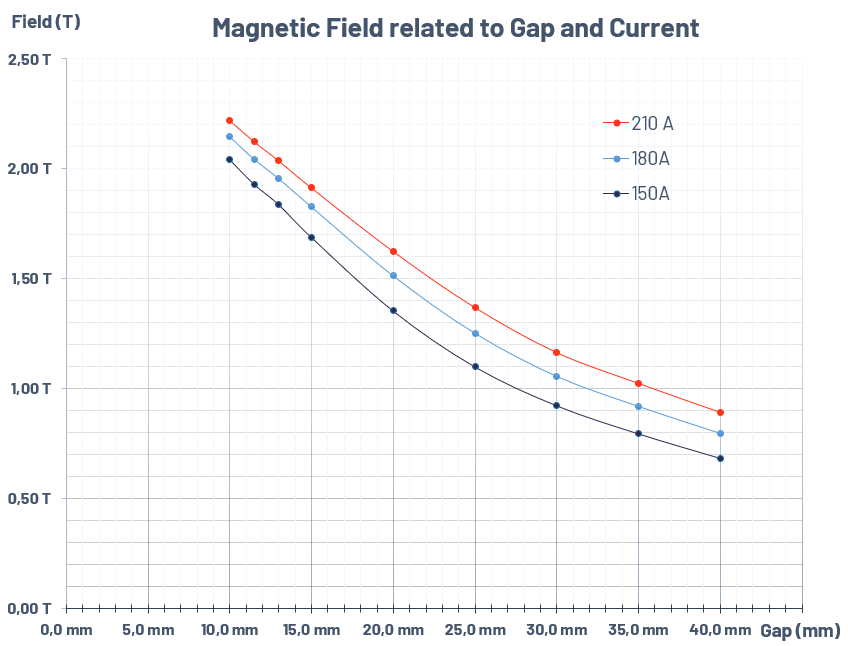

Field and Pole Homogeneity

GapB maxFace DHomogeneity/Volume
10 mm3.92 T
27 mm2.14%/3x3x3 mm
11.5 mm2.80 T27 mm2.16%/4x4x4 mm
13 mm2.07 T27 mm2.26%/5x5x5 mm
25 mm1.66 T27 mm1.74%/6x6x6 mm
20 mm1.36 T27 mm1.98%/6x6x6mm
30 mm0.94 T27 mm2.38%/6x6x6 mm
35 mm0.73 T27 mm2.29%/6x6x6 mm
40 mm0.59 T27 mm2.09%/6x6x6 mm




Tarifs

Veuillez  trouver ci-dessous la liste prix pour vous permettre d'estimer le coût de votre système. Le prix réel dépend d'un certain nombre d'autres facteurs.

Product added to the quote.

Electromagnets


EA73C

EA73C Compact Electromagnet

EA73C

11 200,00€



Set of Poles


Pole 2

3,88 Tesla in 2mm Gap

EA73-P2

450,00€

Pole 5

2,82 Tesla in 5mm Gap

EA73-P5

450,00€

Pole 10

2,07 Tesla in 10mm Gap

EA73-P10

450,00€

Pole 15

1,66 Tesla in 15mm Gap

EA73-P15

450,00€

Pole 20

1,36 Tesla in 20mm Gap

EA73-P20

450,00€

Pole 30

0,94 Tesla in 30mm Gap

EA73-P30

450,00€

Pole 40

0,73 Tesla in 40mm Gap

EA73-P40

450,00€

Pole 50

0,59 Tesla in 50mm Gap

EA73-P50

450,00€

Custom Poles

Custom poles with simulations

EA73-PXX

700,00€



Magnet Power Supply


Alimentation 20V 120A 100ppm

Monopolar Power Supply

MPU-20V120A

7 500,00€

Alimentation Bipolare 20V 120A 100ppm

4 Quadrants Bipolar Power Supply

MPU-20V120A-4Q

10 000,00€

True 10ppm Option

Dérive 10ppm/8h - 2ppm/C°- 2mV Ripple

MPU-10PPM

2 800,00€

True 5ppm Option

Dérive 5ppm/8h - 1ppm/C°- 1mV Ripple

MPU-5PPM

5 500,00€

True 5ppm Option

Dérive 1ppm/8h - 1ppm/C°- 1mV Ripple

MPU-1PPM

8 200,00€

HALL Option

Integreted HALL Gaussmeter + HALL Probe

MPU-HALL

3 000,00€



Accessories


Water Chiller

System 5kW

CHILLER-5KW

6 000,00€

Rotating Base

EA73-ROT

2 500,00€

Motorized rotating base

with electronic controller

EA73-ROTM

5 000,00€

Modulation coils

Set of two modulation coils

EA73-AC

1 300,00€


Product added to the quote.


Specific request

Our means of simulation and our know-how allow us to manufacture a custom-made electromagnet according to 5 criteria:

  • Air gap
  • Maximum field
  • Homogeneity
  • Speed of field variation
  • Mechanical constraints (Optical access, UHV, size, mass, etc)

CAYLAR designs and manufactures magnetizing coils, vacuum chambers and current sources which offers a great flexibility for the design of an electromagnet. It is possible to adapt the coils to an existing power supply.
