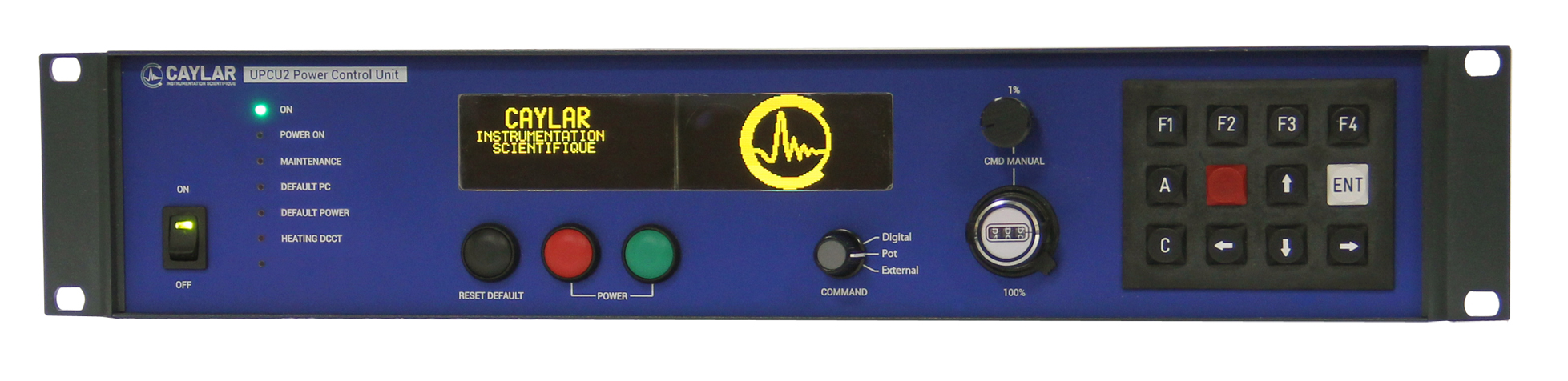

UPCU2 - Power Supply Control Unit





Documents





Power Control Rack Overview

The UPCU2 Rack allows to drive and supervise power sources remotely and to improve performance, safety and reliability.
Regulation and protections are analog. The controls, readings and supervision are digital.

Compatible with all DRUSCH, BOUHNIK, CAYLAR power supplies and others.


  • Analog control for very low noise and better stability.
  • Current and magnetic field control by NMR* or HALL.
  • Stability class 100 ppm, 10 ppm* or <1 ppm*.
  • No switching power supply.
  • External or dual internal 20-bit DAC control (100% and 1%).
  • Very low noise 24-bit digital readout.
  • SCPI controls via digital interface RS232, Ethernet, MODBUS available.
  • Analog interfaces (Read ±10V, Output ±10V, Status, Interlocks and Analog powering).

*Performance may be limited by power supply or load.
