MFM - Magnetic Field Module




Small autonomous In-Plan and Out-Of-Plane magnetic field generator

The CAYLAR MFM (Magnetic Field Module) is an stand-alone magnetic field generator with a very low overshoot for MOKE and MFM applications.

The MFM could be interfaced with Park Systems Unique SmartScan operating software to allow sequential imaging with variable magnetic field. This means it is possible to set a series of images with variable field in an automatic fashion. This functionality is only available when combining the MFM with the Park Systems AFM.
• No impact on the AFM performance and operating modes
• Noise level unchanged (<50pm)
• No scan distortion or out of plane motion.
• No thermal drift

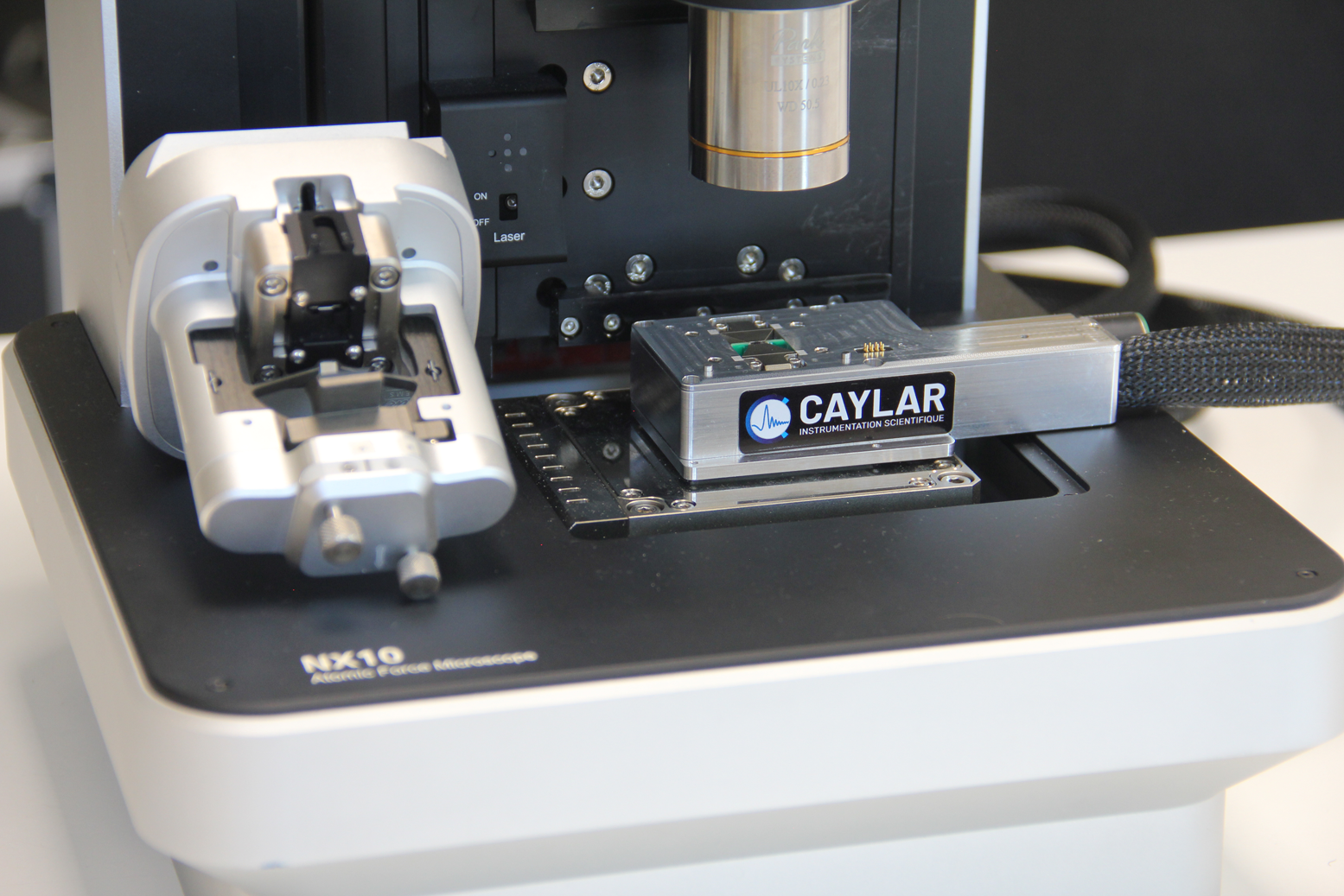

CAYLAR MFM Installed on a NX10 AFM Park Systems

CAYLAR MFM Installed on a NX10 AFM Park Systems



Documents

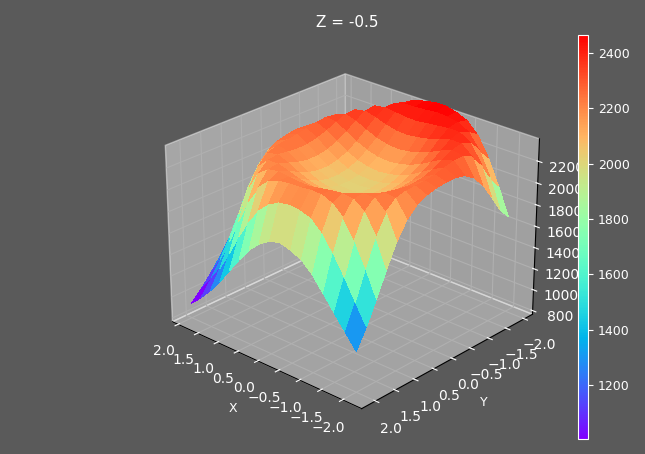

View of the 3D mapping of the Out Of Plane pole at 0.2T

View of the 3D mapping of the Out Of Plane pole at 0.2T




Specifications

Dimensions
34 Kg
Absolute Accuracy
±0.65 T (±6500 G)
Noise measurement±0.49 T (±4900 G)
Overshoot *
(factory settings)
±0.50 T (±5000 G)
 *PID settings are available to reduice overshoot




In Plane

Gap GB max*
1 mm
±0.65 T (±6500 G)
2 mm±0.49 T (±4900 G)
3 mm±0.50 T (±5000 G)
4 mm±0.40 T (±4000 G)
 *At 0.5mm from the surface



Out Of Plan

Distance from pole
0.5mm1mm
Max Field Open loop
±0.2T (±2000G)
±0.18T (±1800G)
Max Field Close loop
+1800/-1400 G+1600 G/-1100G




MPU 6U

Rack 6U 19" jusq'à 6kW en monopolaire 2 quadrants ou 3kW en bipolaire 4 quadrants.

MPU 6U




MPU 16U

Baie 16U 19" jusqu'à 24kW en monopolaire 2 quadrants ou 12kW en bipolaire 4 quadrants.

MPU 16U




MPU 24U

Baie 24U 19" jusqu'à 48kW en monopolaire 2 quadrants ou 24kW en bipolaire 4 quadrants.

MPU 24U


TECHNICAL DATASHEET IN PROGRESS
The CAYLAR magnetic field module is a new device currently being measured. All tests and mapping are in progress, new data will be available.
Some data are subject to change.
